Q Switching Techniques

Juli 24, 2021 Posting Komentar

The Q-Switched laser beam pulses last a mere billionth of a second. It is achieved by pumping the gain or active medium in the absence of the mirrors of the cavity or resonator ie the feedback mechanism and then the mirrors of the cavity are switched on to get a giant of short duration.

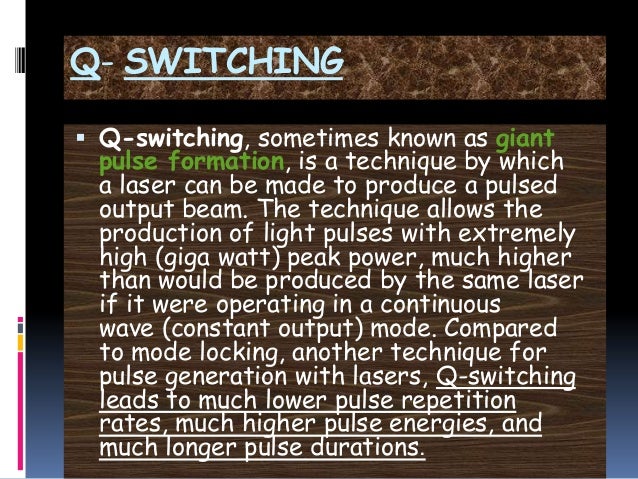

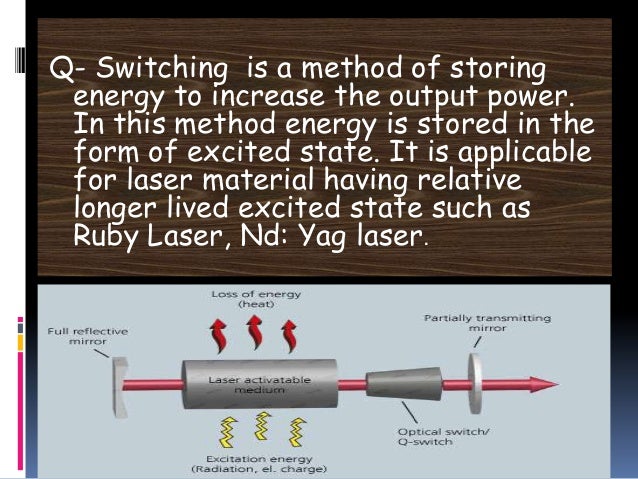

Gain Media Q Switching

This produces a higher population inversion in the metastable state.

Q switching techniques. Using a near. A Q-switched laser is a laser to which the technique of active or passive Q switching is applied so that it emits energetic light pulses. Pockel cell acts as a quarter wave plate producing a phase difference of.

A quality-switched laser Q-Switched is a non-invasive laser that creates high-intensity pulsed beam light. Therefore there exists a Q-switching event around the transition time t0whichis showninFig3. Cutting drilling laser marking pumping nonlinear frequency conversion devices range finding.

This attenuator is usually a light modulator rather than a mechanical shutter which reduces the amplitude or power of the light beam. Ask me if you want to know how it works. Out of three methods circuit switching and packet switching are commonly used but the message switching has been opposed out in the general communication procedure but is still used in the networking application.

Q switching is a technique for obtaining energetic short but not ultrashort light pulses from a laser by modulating the intracavity losses and thus the Q factor of the laser resonator. 8021Q or dot1q tunneling is pretty simplethe provider will put an 8021Q tag on all the frames that it receives from a customer with a unique VLAN tag. Q-Switched lasers are able to shatter tiny fragments of pigmentation or ink.

By using a different VLAN tag for each customer we can separate the traffic. A new technique of Q-switching is presented which is characterized by the fact that no additional switch Pockels cell saturable absorber etc is required in the resonator. A Pockels cell alters the polarization state of light passing through it when an applied voltage induces birefringence changes in an electro-optic crystal such as KDP and BBO.

Types of Switching Techniques There are basically three types of switching methods are made available. An electro-optic Q-switch has been opened in two steps to allow slow pulse build-up giving in conjunction with a resonant reflector a high degree of mode selection in a way analogous to the use of saturable absorbers. About Press Copyright Contact us Creators Advertise Developers Terms Privacy Policy Safety How YouTube works Test new features Press Copyright Contact us Creators.

It is accomplished by using a device to prevent the reflection of photons back and forth in the active medium. 1 The energy emitted from a Q-switched laser is concentrated into very powerful pulses. In this switching event Qtank is decreased from QU that sustains an underdamped response to QO that supports an overdamped response.

An electro-optic Q-switch has been opened in two steps to allow slow pulse build-up giving in conjunction with a resonant reflector a high degree of mode A two-step Q-switching technique for producing high power in a single longitudinal mode SpringerLink. Eliminated by forcing the tank to switch to and stay in an overdamped response by reducing the load resistance R such that α2 ω2 0. In a first phase the gain medium is pumped while the extraction of energy as laser light is prevented by keeping the resonator losses high that is.

8021Q tunneling aka Q-in-Q is a technique often used by Metro Ethernet providers as a layer 2 VPN for customers. Q-switching is a technique used to produce a high output pulse. Changing places of two cards is one of 1000 ways to do card magic.

Using this technique a flash pumped NdCaWO 4 laser has produced reliable operation in a single longitudinal and transverse mode with an output power of 250 kW. Q switching is a method for generating intense short pulses sometimes called giant pulses of light with a laser. When there is no voltage given to cell there is no phase.

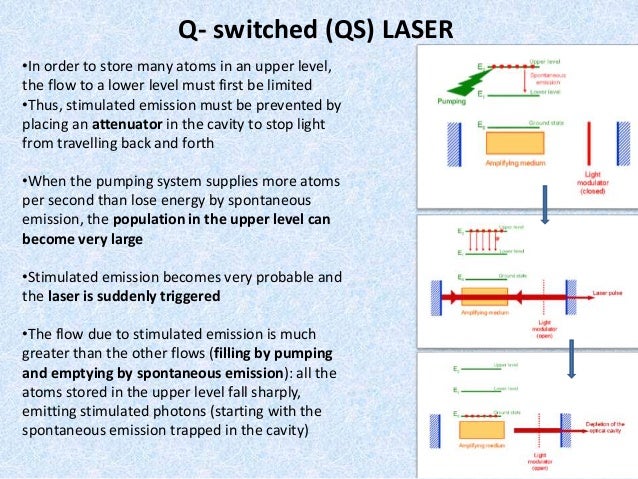

Thus stimulated emission must be prevented by placing an attenuator in the cavity to stop light from travelling back and forth note. Q-switching In order to store many atoms in an upper level the flow to a lower level must first be limited. While there are a wide variety of q-switch technologies notably including acousto-optic and electro-optic modulators the technique as a whole can be broken down into two primary categories of q-switches passive and active.

It can be shown that the effectiveness of the switching strongly depends on the resonator geometry the position of the laser medium in the resonator and the features of the laser medium itself. Q switching in laser is a technique of reducing giant Plus ie short duration high energy plus. Typical applications of such lasers are material processing eg.

The basic principle is as follows. Q switching technique. Techniques for Q switching Using a mechanically driven device A rotating prism or mirror Rotate one of the mirrors about an axis perpendicular to the laser Rotating speed cannot be made very large Q switching does not take place instantaneously 1312013 Preparatory School to Winter College on Optics 21.

Frequently Q-switches are employed in laser cavities for the purpose of shortening the output pulse. Active q-switches rely on the ability of flip a switch. When used in conjunction with polarizers these cells can function as optical switches or laser Q-switches.

The technique is mainly applied for the generation of nanosecond pulses of high.
